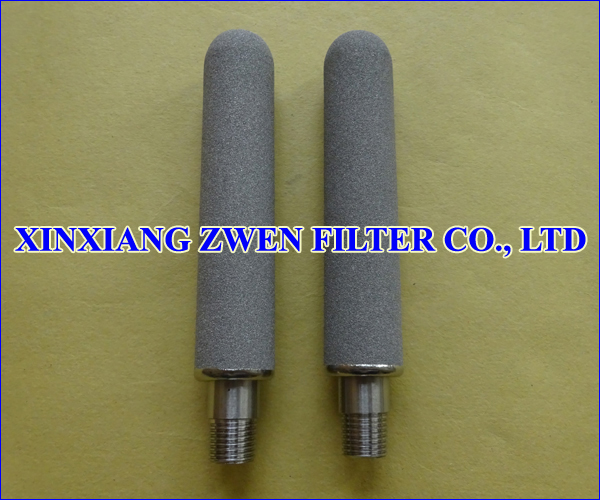

Titanium Powder Filter
Titanium Filter

Titanium Filter

Titanium Filter Feature

1. Titanium filter is made from titanium powder particle

2. Titanium filter is sintered in a high temperature vacuum furnace

3. Titanium filter is surface filtration and depth filtration

4. Titanium filter has narrow pore size distribution

5. Titanium filter is suitable for food industry and medicine industry (GMP) because titanium is an in-noxious metal and an inert metal

6. Titanium powder particle will not shed in the filtration process

7. High dirt holding capacity

8. Good porosity

9. High filter rating accuracy

10. The effect of filtration is good

11. High filter efficiency

12. Good permeability

13. Pressure loss is low in filtration process

14. High flow rate at low differential pressure

15. High compression strength

16. Good mechanical strength

17. Good abrasion resistance

18. Good durability against most liquids, gases and aggressive steam

19. High temperature resistance

20. High corrosion resistance

21. Backwash

22. Washable and Cleanable

23. Reusable

24. Long service life


Titanium Filter Technical Data

Raw Material: Titanium

Filter Rating: 0.22-100 Microns

Operation Temperature:  300

Outside Diameter: 12 mm, 25 mm, 30 mm, 50 mm, 60 mm, 65 mm, 80 mm, 90 mm, 100 mm

Length: 254 mm, 508 mm, 762 mm, 1016 mm or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector:

1. DOE

2. 220

3. 222

4. 226

5. Thread (NPT,BSP,G,M,R)

6. Flange

7. Special customization


Application

1. Steam filtration

2. High temperature liquid filtration

3. High temperature gases filtration

4. Catalysts powders recovery

5. Precoat support filtration
