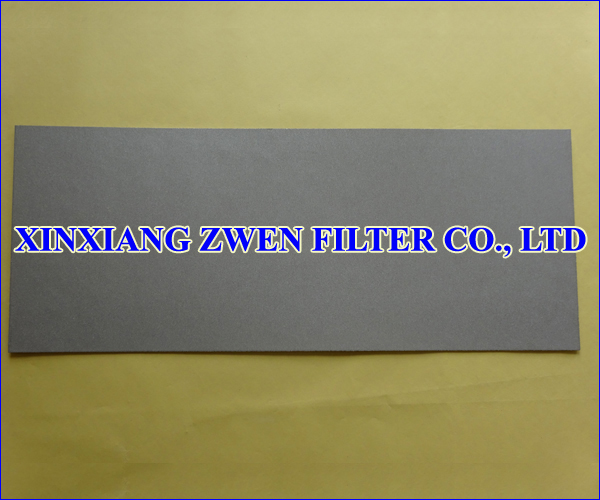

Ti Sintered Powder Filter Sheet
Ti Sintered Powder Filter Sheet

Ti Sintered Powder Filter Sheet

Ti Sintered Powder Filter Sheet Technical Data

Raw Material: Ti

Filter Rating Range: 0.22 Micron ~ 100 Microns

Operation Temperature:  300

Length:  800 mm

Width:  320 mm

Regular Size (Length*Width): 50 mm*50 mm,100 mm*100 mm,200 mm*200 mm,300 mm*300 mm,800 mm* 320 mm

Special Size: 1000 mm*200 mm

Thickness: 1 mm,1.5 mm,2 mm,3 mm,5 mm


Ti Sintered Powder Filter Sheet Feature

1. Ti sintered powder filter sheet is made from ti powder particle

2. Ti sintered powder filter sheet is sintered in a high temperature vacuum furnace

3. Ti sintered powder filter sheet is depth filtration

4. Ti sintered powder filter sheet has narrow pore size distribution

5. Ti sintered powder filter sheet is a good filter media in food industry and medicine industry (GMP) because ti is an in-noxious metal and an inert metal

6. Ti powder particle will not shed in the filtration process

7. High dirt holding capacity

8. High porosity

9. High filter rating accuracy

10. The effect of filtration is good

11. High filter efficiency

12. Good permeability

13. Pressure loss is low in filtration process

14. High flow rate at low differential pressure

15. High compression strength

16. High mechanical strength

17. High abrasion resistance

18. High durability against most liquids, gases and aggressive steam

19. High temperature resistance

20. High corrosion resistance

21. Backwash

22. Washable and Cleanable

23. Reusable

24. Long service life


Application

Sensor, inductor, detector, survey meter, pressure release device, protein analysis, polymer extrusion device, PEM electrolyzers, membrane filtration, polyester filtration, polymer filtration, oil filtration, steam filtration, gas filtration, powder filtration, liquid filtration, water filtration, beverages filtration, detergent filtration, solvents filtration, medicine filtration, pharmaceutical industry, petroleum industry, biological industry, chemical industry, chemical fiber industry, food industry
